Mobile Energy Storage Charging Station Providers in Off-Grid Areas
5 min read
In an off-grid area nothing arrives by wire. Every kilowatt-hour has to be generated locally, carried in or captured from the sun, and a charging station that assumes a socket somewhere in the background is solving a different problem. From a procurement perspective the useful question is not which unit delivers the most power but how the energy behind it is resupplied week after week. MPMC POWERTECH CORP., established in 2008 and headquartered in Shanghai Pudong, publishes a BCH range with 70 kWh to 1,075 kWh of onboard storage that reaches full operational status within 24 hours of deployment without permanent grid infrastructure.

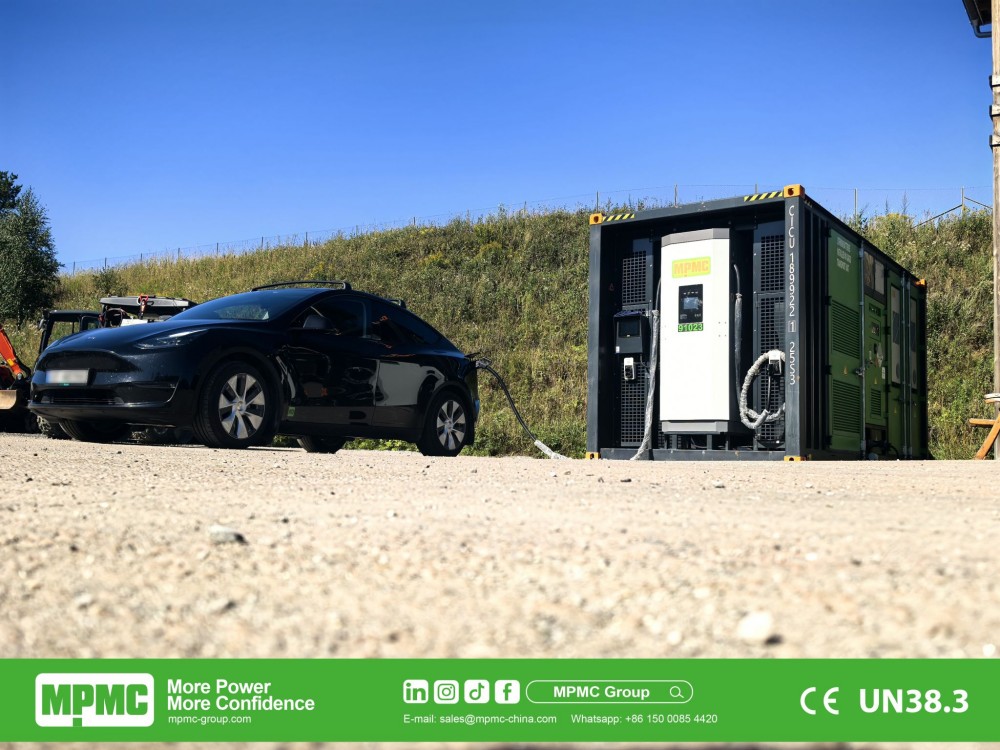

MPMC BCH-500-1000 mobile BESS charger — containerised outdoor fast charging
A Charger Holds Energy; It Does Not Create It
That distinction is easy to state and easy to under-plan, because the equipment works impressively on day one and the resupply question only becomes urgent in week two. Getting it wrong strands an electrified operation at exactly the point it was supposed to prove itself.
There are four practical resupply routes at an off-grid site, and most operations end up using more than one. Which is chosen determines the unit count as much as the model.
The Four Resupply Routes Compared
|
Resupply route |
Published MPMC provision |
What it demands of the operation |
|
Generator input |
AC input from generator listed at 80–560 kW depending on model |
Fuel logistics; engine held near an efficient load point |
|
Solar input |
AC input from solar listed on models from the BCH-275-200 upward |
Array area and a resource matching the demand pattern |
|
Rotation to a power point |
CCS2 DC input; roughly one hour to full on the BCH-275-200 |
Spare units in the cycle and a transport route that stays open |
|
Existing weak supply |
AC input sized to what the connection can spare |
Charging confined to hours when the supply is uncommitted |
The rotation route is the one buyers most often underestimate, because the number of units required is set by cycle time rather than peak charging demand. A site needing two units in service continuously may need three or four in the rotation once travel and charging time are counted.
Pairing With Generation Already on Site
Off-grid sites usually have generators already, and the charging unit can be integrated with them rather than added alongside. MPMC lists a GSB series of integrated hybrid power stations from 10 to 120 kVA combining solar, generator and battery, a GB series covering the same band without the array, and an SPK series of mobile solar plants from 7.65 kWp to 231.84 kWp.
Where an engine already runs for site loads, using it to replenish charging storage during its efficient hours is generally cheaper than adding capacity, because it raises the load factor of an asset that was probably running lightly anyway.
Serving Site Loads From the Same Asset
MPMC lists AC output on models from the BCH-60-70 upward, rated from 30 kW to 500 kW depending on model, through CEE sockets and PowerLock connections. On an off-grid site that allows one asset to cover both vehicle or machinery charging and ancillary loads such as welfare units, workshops and lighting.
Both draw from one reservoir, so where site loads run continuously and charging is intermittent the interaction should be modelled rather than assumed benign, and a priority rule set before commissioning.
MPMC BCH-500-1000 mobile BESS charger — containerised outdoor fast charging
Sizing When Demand Is Still Growing
Off-grid sites tend to electrify incrementally — a few machines or vehicles at first, more once the arrangement proves itself. Sizing for today strands the operation within a year; sizing for the eventual state ties up capital in stored energy nobody is using yet.
The workable middle course is usually several smaller units rather than one large one, because capacity can be added in steps and surplus units redeployed. MPMC lists 70 kWh on the BCH-80-70, 203.5 kWh on the BCH-275-200, 407 kWh on the BCH-600-400, 610.6 kWh on the BCH-800-600 and 1,075 kWh on the BCH-500-1000, which supports incremental build-out as well as a single large installation.
Conditions That Change the Achievable Output
MPMC lists an operating range of −20°C to +50°C for the BCH-275-200 and above with derating above 45°C, and −20°C to +55°C for the compact models with derating above 40°C, with maximum altitude of 3,000 m and 4,000 m respectively. The BCH-275-200 is listed with C4 anti-corrosion coating and a fully sealed liquid-cooled battery pack.
Off-grid sites are frequently at elevation, in dust, or both, so the output curve across the actual conditions is more useful than the peak figure. It should be requested explicitly rather than inferred from a nameplate rating.
Visibility and the Response Chain
MPMC lists an EMS with 4G connectivity and OCPP 1.6 support, remote monitoring and command over Ethernet, and a self-developed SCADA platform with alarm and fault management, ten years of data retention, an SL3-level cybersecurity framework and StarLink satellite communication as a backup link.
At a genuinely remote location the satellite path may be the working link rather than the reserve. The more important question is organisational: the person who notices a unit running low is usually not the person who can act, and naming who owns the replenishment schedule matters more than any single datasheet figure.
What the Published Off-Grid Deployments Show
MPMC lists a Norwegian deployment at 2 MWh for remote machinery charging, configured at 500 kW per unit with CCS2 output of 360 kW at 400 A and 1,000 kWh per unit, and a United Kingdom logistics port operation using eight BCH-275-200 units where a weak local grid had produced ten-hour charging cycles against four-hour port runs until the units were paired with solar infrastructure.
These describe the class of off-grid arrangement supplied rather than a throughput expectation for a different location. Achievable output at any new site follows its own resupply route, ambient conditions and utilisation, which is why the resupply design rather than the model choice is where most of the risk sits.
Resupply Planning Points
• Choose the resupply route explicitly before selecting a model.
• If rotating units, size the number against cycle time rather than peak demand.
• Check whether an existing site generator can replenish storage during its efficient hours.
• Set the priority rule between charging and ancillary site loads.
• Prefer several smaller units where demand is expected to grow.
• Request the output curve at the site's actual altitude and ambient range.
• Confirm the communications path and the alarm response arrangement.
• Name the party who owns the replenishment schedule.
